Power Quality Analyzer, Electrical Anomalies Monitoring and Fire Safety Device, Ohm Assistant, 4th Generation, Three-Phase, 100A CTs
₹13,750.00
Real-time electrical anomalies monitoring and fire risk mitigation, Ohm Assistant, 4th Generation, Three-Phase, 100A Standard CTs
The Ohm Gen4 Power Quality Analyzer is an intelligent electrical monitoring and protection solution designed for single-phase and three-phase systems. It continuously monitors critical electrical parameters, detects anomalies in real time, and supports cloud-based analytics for enhanced electrical safety and energy efficiency.
Key Features
- Real-time monitoring of electrical faults and power quality parameters
- Detection of arcing, short circuit, overcurrent, and earth leakage
- Cloud dashboard for event logging and historical analysis
- Wi-Fi 2.4 GHz and Ethernet connectivity
- Mobile application for alerts and energy tracking
- Compact DIN rail mounting for easy installation
- Supports up to 400A using external CTs
- Integrated monitoring and protection capability
- Suitable for residential, commercial, and industrial applications
Description
Power Quality Analyzer, Electrical Anomalies Monitoring and Fire Safety Device, Ohm Assistant, 4th Generation, Three-Phase, 100A Standard CTs
The Ohm Gen4 Power Quality Analyzer is a comprehensive electrical safety, monitoring, and energy management solution developed for modern power distribution systems. Designed for both single-phase and three-phase installations, the analyzer provides continuous visibility into electrical health, enabling users to identify abnormal conditions before they lead to equipment damage, downtime, or safety hazards.
The device combines advanced power quality analysis with intelligent event detection and cloud connectivity, helping facilities improve operational reliability, electrical safety, and energy efficiency. Its compact DIN rail-mounted design allows convenient installation between the utility meter and distribution board, making it suitable for residential buildings, commercial establishments, industries, and utility monitoring applications.
Electrical Parameters & Fault Detection
The analyzer continuously monitors and reports critical electrical anomalies including:
| Parameter / Event | Reporting | Isolation |
|---|---|---|
| Arcing | ✔ | ✔ |
| Short Circuit | ✔ | ✔ |
| Over Current | ✔ | ✔ |
| Earth Leakage | ✔ | ✔ |
| Over Voltage | ✔ | ✔ |
| Under Voltage | ✔ | ✔ |
| Phase Loss | ✔ | ✔ |
| Phase Reversal | ✔ | ✔ |
| Loss of Supply to Neutral | ✔ | ✔ |
| Voltage Quality | ✔ | Optional |
| Low Power Factor | ✔ | Optional |
| High Harmonics | ✔ | Optional |
| High Inrush | ✔ | Optional |
| Unbalanced Load | ✔ | Optional |
The system can also support isolation or tripping actions during severe electrical events when integrated with compatible protection devices.
Connectivity & Monitoring
The Ohm Gen4 Analyzer supports modern connectivity and remote monitoring capabilities:

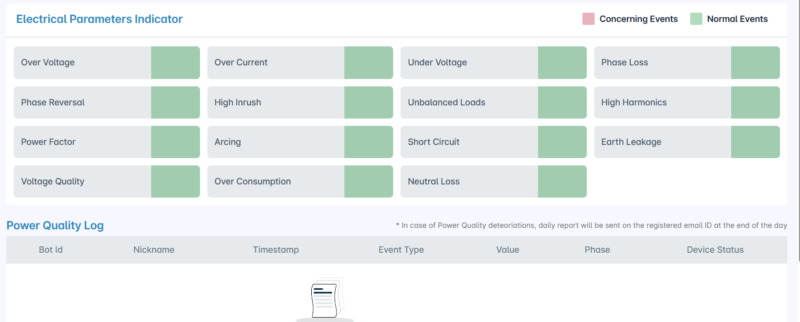

- Cloud-based dashboard for centralized monitoring
- Historical event and energy data storage
- WiFi 2.4 GHz and Ethernet communication
- Mobile app for alerts and consumption tracking
- Real-time notifications for abnormal conditions
- Remote accessibility for analysis and diagnostics
Technical Specifications
- Class 1 accuracy
- Single-phase and three-phase compatibility
- Voltage range: 110–415V AC
- Frequency: 50/60 Hz
- Current ratings: 100A / 200A / 400A with external CTs
- DIN rail mounting, compact 5 DIN size
- Dimensions: 90 × 90 × 67 mm
- Cloud-based data storage
Installation Advantages
- Compact and customizable installation
- Suitable for meter rooms, electrical shafts, and DB panels
- Compatible with standard MCB/MCCB systems

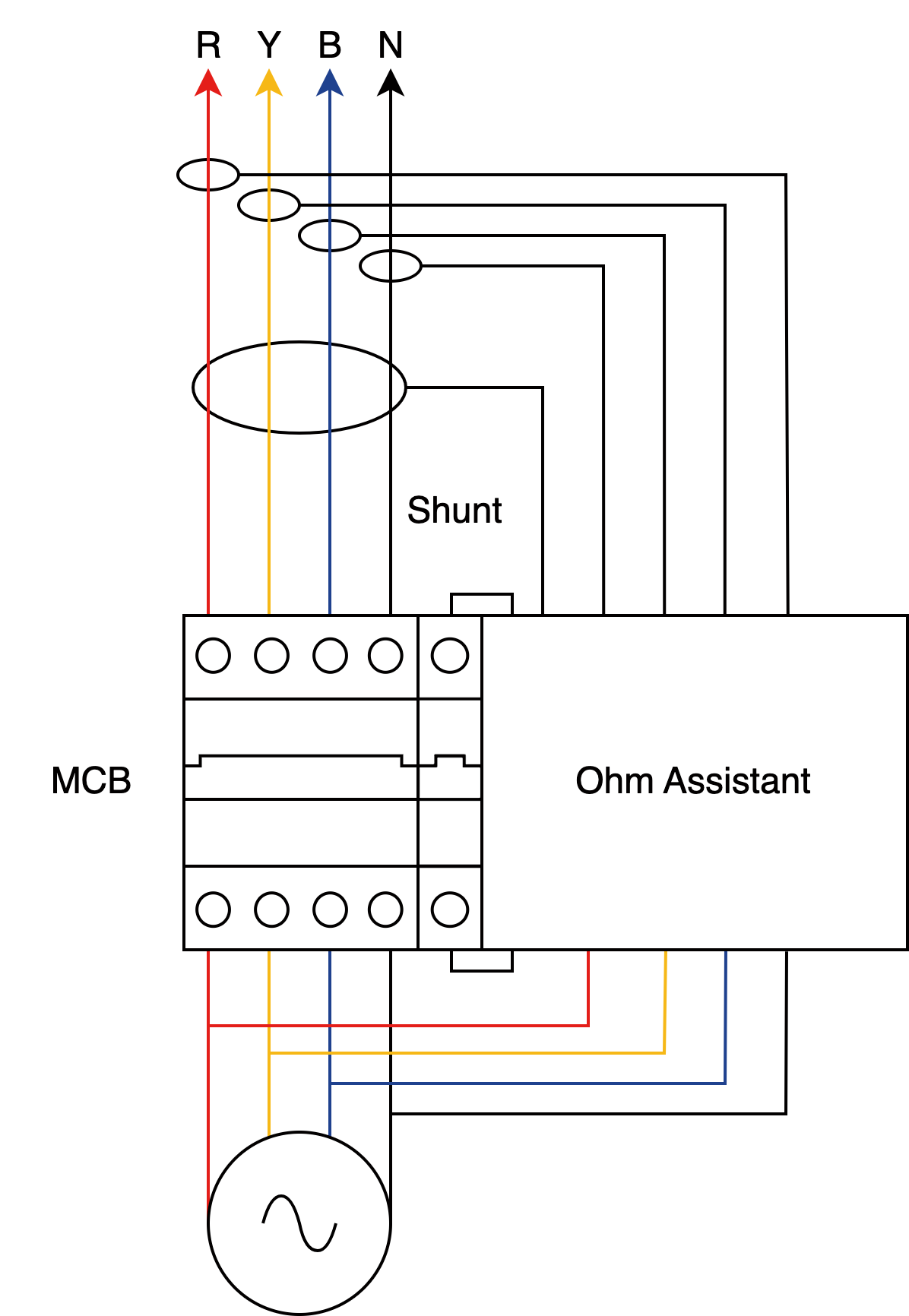

- Supports shunt release integration for protection actions
- Simplifies electrical monitoring infrastructure
Benefits
- Enhances electrical safety and preventive maintenance
- Reduces risk of electrical failures and downtime
- Consolidates multiple monitoring functions into one device
- Supports energy efficiency initiatives
- Cost-effective alternative to multiple standalone protection devices
Additional information
| Brand | SustLabs Ohm Assistant |
|---|
