Elmeasure iELR 300 is a Panel Mount Earth Leakage Relay (ELR) to Safeguard electrical systems from fatal electrical shocks and fire hazards.
Digital Earth Leakage Relay, 96x96mm Panel Mount, 30mA to 3A, Class 5FS without RS485: Elmeasure iELR 300 Original price was: ₹2,300.00.Current price is: ₹1,950.00.
Back to products
Electrical Anomalies monitoring and fire safety
Power Quality Analyzer, Electrical Anomalies Monitoring and Fire Safety Device, Ohm Assistant, 4th Generation, Three-Phase, 200A CTs ₹17,750.00
Elmeasure

Earth Leakage Relay, 2 DIN, 30mA to 3A, Class 5FS without RS485: Elmeasure iELR 200

Original price was: ₹2,300.00.Current price is: ₹2,225.00.

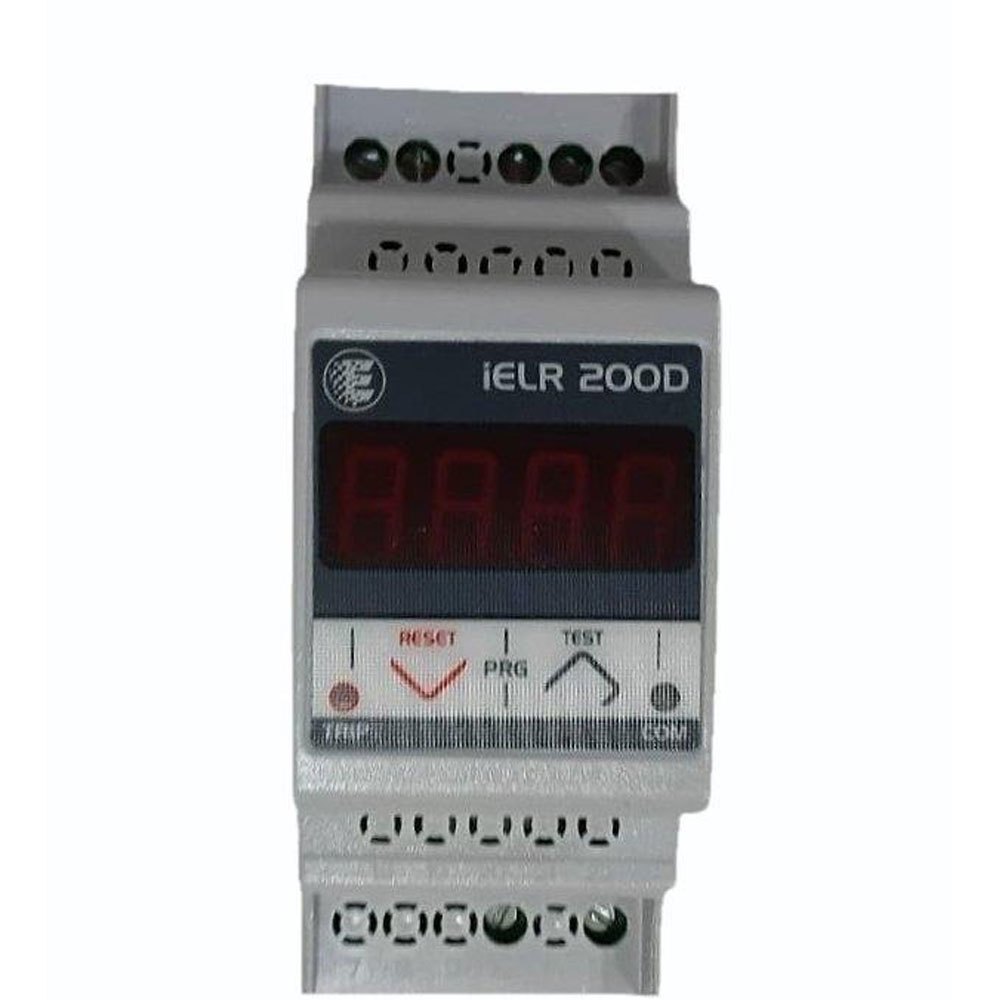

Earth Leakage Relay, DIN-Rail Mounting, 30mA to 30A, Cl 5FS-ELR 200D

  • Safeguard from fatal electrical shocks and fire hazards.
  • Prevent equipment damage and the risk of unplanned downtime.
  • Helps in diagnosing loose connections and damaged insulations.
Description

Description

Earth Leakage Relay, 2 DIN, 30mA to 3A, Class 5FS without RS485: Elmeasure iELR 200

Field programmable: Trip current and trip time can be set via front panel keys with password protection.
● Intelligent Tripping: Inverse Curve-Trip time is inversely proportional to fault current.
● Manual test & reset keys
● Continuous scrolling display for set current and set time
● Continuous earth Leakage value display helps online loss analysis.
● RS485 is optional (iELR 300 only)

You may select the appropriate Core Balanced Current Transformers along with the iELR

Plastic Enclosure Round CBCT

  1. CBCT-ID 35mm, 2) CBCT-ID 70mm, 3) CBCT-120mm, 4) CBCT-210mm

Tape Wound Round CBCT

  1. CBCT- 60mm, 2) CBCT-100mm, 3) CBCT-150mm, 4) CBCT-200mm 5) CBCT-250mm, 6) CBCT-300mm

Tape Wound Rectangular CBCT

  1. CBCT-ID 150 × 50mm ,2) CBCT-ID 200 × 100mm, 3) CBCT-ID 250 × 50mm, 4) CBCT-ID 250 × 100mm, 5) CBCT-ID 350 × 50mm, 6) CBCT-ID 300 × 100mm

*Price of ELR is exclusive of the price of Core Balanced Current Transformers (CBCT). The prices of CBCT can be requested separately as per the requirement.

Additional information

Additional information

BrandElmeasure
Category CodeEL0300PA0Z70000
