Description

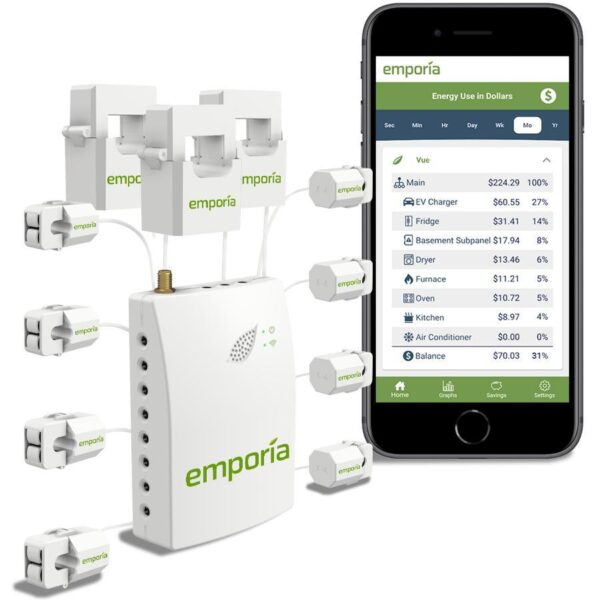

Emporia Vue : Save on Electricity Bill with 3-Phase Smart Electricity Monitor with 8 Sensors
- 3 Phase Power Monitor: Includes Three 200A Sensor for Homes & light commercial 3-phase/4-wire electrical systems ( upto 240VAC & less than 600A ).
- 8 individual circuit/appliance sensor: Emporia Vue Smart Electricity Monitor 3-Phase With 8 Sensors includes eight 50A sensors to accurately monitor your air conditioner, furnace, water heater, washer, dryer, range, etc.
- Installs In Electricity Distribution Box of Homes with clamp-on sensors in a noninvasive manner.
- 24/7 Electricity Monitoring: Monitor your home’s real power anywhere, anytime to prevent costly repairs, conserve energy, and save on electricity bill.
- Lower Your Electric Bill: Gauge real-time spending and get actionable notifications to understand where you can save costs.
- Real-Time Electricity Data: Emporia connects to WiFi to monitor Electricity use with iPhone / Android app. Sensors provide 1-second data, accurate to ±2%. Data Export is also available.
- Appliance Monitoring Without Guesswork: Comes with eight 50A sensors to accurately monitor your air conditioner, furnace, water heater, washer, dryer, range, etc. ( Max upto 16 Sensor)
- Need to monitor more circuits ? Don’t Worry We have a solution for that too.. Just get another Emporia Vue Monitor with 8 or 16 Sensors and View all the circuits merged in one single app.
Package includes:
- One Main Energy Monitor
- Three 200A current sensors for service mains
- Eight 50A current sensors for individual circuits
- Wire harness
- Extra wire & wire nuts
- Wifi antenna & cable
Monitor dimensions:
- 1″ x 3.1″ x 1.1″ (105mm x 80mm x 30mm)
200A sensor dimensions:
- 6″ x 1.7″ x 1.6″ (65mm x 44mm x 41mm)
- Window diameter: 1″ (26mm)
- Cable length: 39″ (1m)
- Connector plug: 3.5mm
50A sensor dimensions:
- 6″ x 0.9″ x 1″ (41mm x 23mm x 26mm)
- Window diameter: 0.39″ (10mm)
- Cable length: 39″ (1m)
- Connector plug: 2.5mm
You may like to review Smart Electricity Monitor, 3-Phase with 16 Sensors
