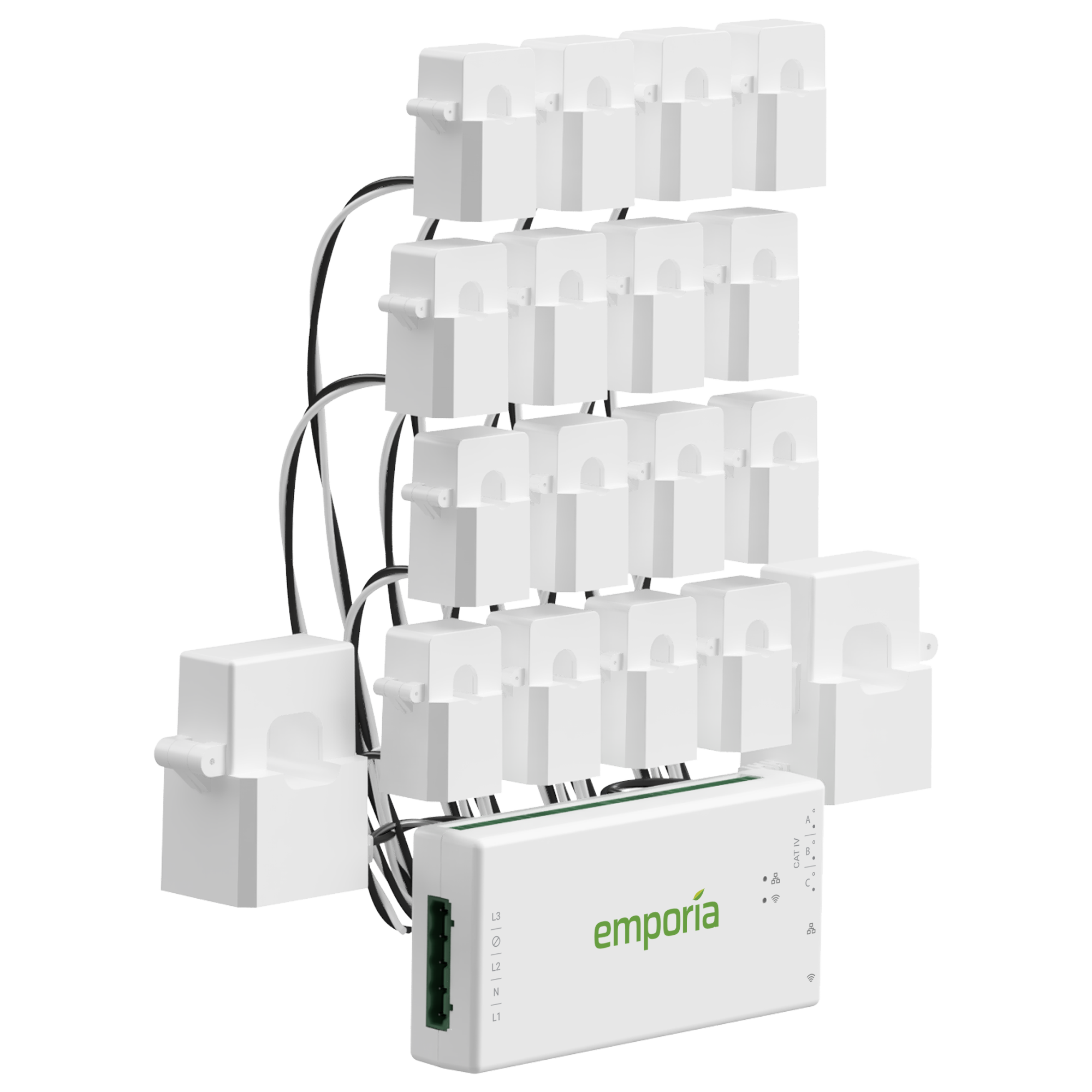

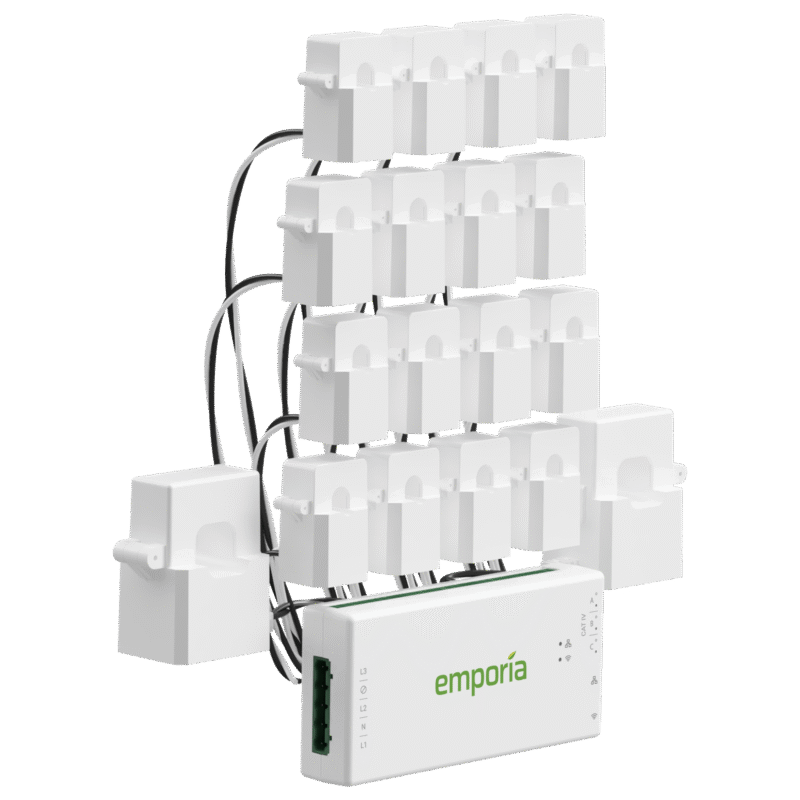

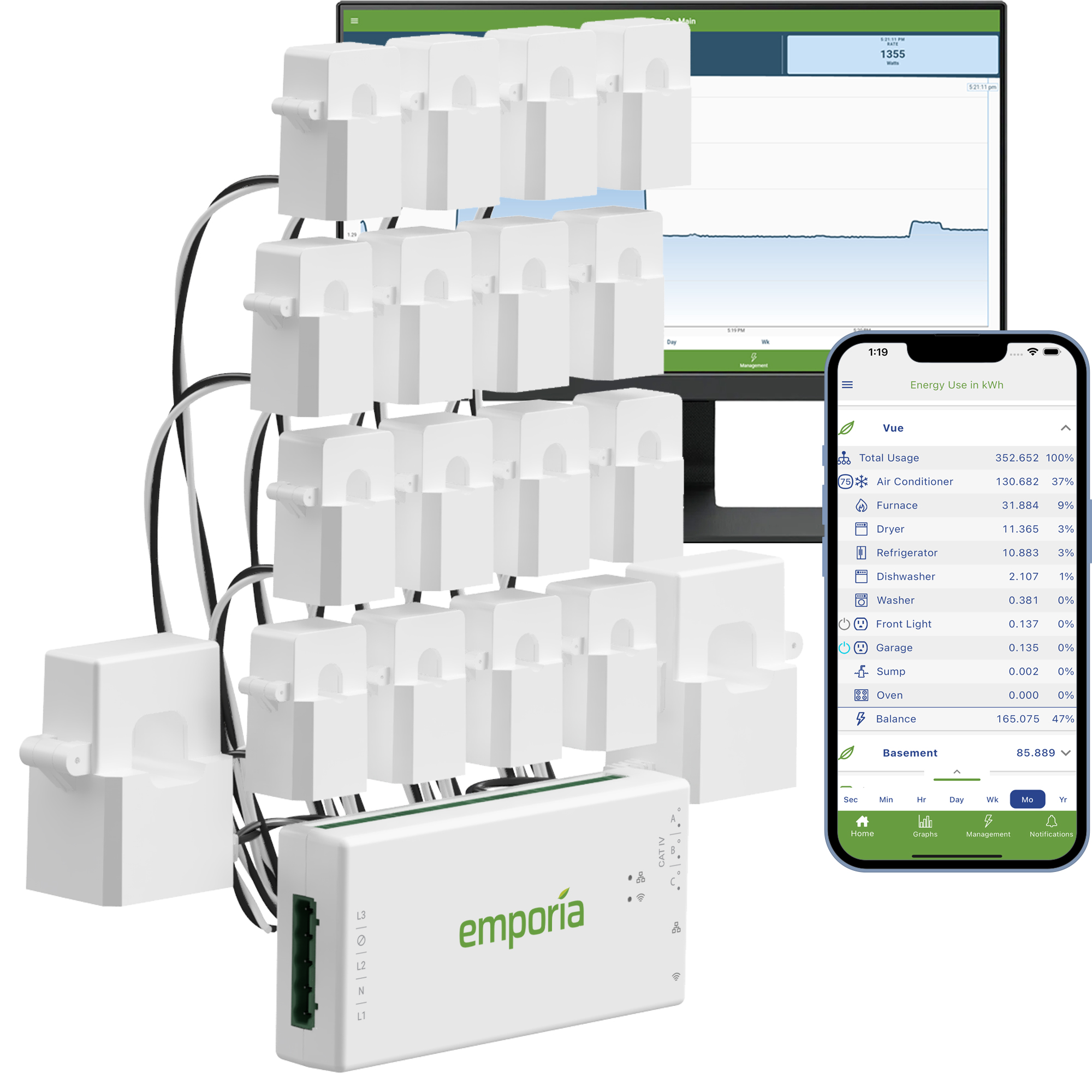

Smart Electricity Monitor, Emporia Vue Gen3, 1-Phase Energy Monitor With 16 Sensors
₹38,000.00

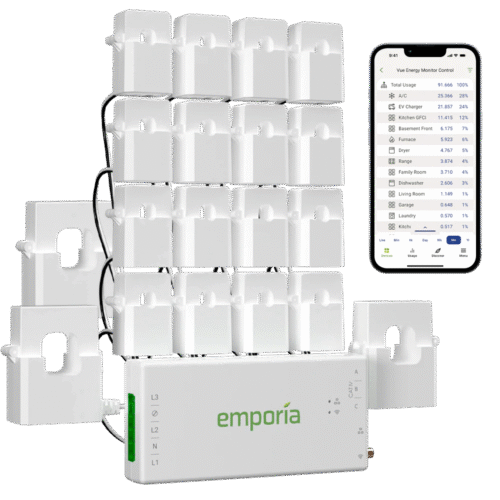

Emporia Vue 3, Smart Electricity Monitor 3-Phase with 16 Individual Circuit/ Appliance Sensor Monitoring
Empower your home, optimize your energy use!
Emporia Vue Smart Electricity Monitor/meter with 16 sensors allows for up to 16x branch circuits to be monitored from the same panel that your Vue energy monitor is installed in. Use these sensors to track your solar generation, high appliance load or any circuits of interest.
- Real-time Data: Unlike a monthly utility bill, the Vue breaks down usage by minute, hour and day. With the free mobile or web-based app, information about your energy consumption is always at your disposal.
- Notifications: Stay informed and manage your energy consumption with real-time notifications from your Vue. The device offers customizable notifications, including reminders – never worry that you left the oven on again!
- Automation: Set a schedule to automatically charge your car at the lowest price. Turn on and off lights based on your household routine. Manage Peak Demand thresholds and automatically adjust your smart devices when utility pricing changes.
- Save Money: With easy-to-use graphs and real-time reporting, the Vue quickly helps you identify wasteful energy culprits. For the average homeowner, the Vue can save you 10% or more monthly on your energy bill.
Description
Description
Smart Electricity Monitor, Emporia Vue Gen3, 1-Phase Energy Monitor With 16 Sensors
Homeowners seeking comprehensive, real-time insights into their energy consumption.
- This Vue home energy monitor is perfect for individuals who want to:
- Monitor up to 16 individual circuits to pinpoint which appliances or systems consume the most power.
- Leverage real-time data to adjust habits, reduce waste, and potentially lower electricity bills by 10% or more.
Integrate with the Emporia app to automate energy management based on time-of-use rates, peak demand, or excess solar generation. - Track solar generation and net metering to maximize the benefits of solar investments.
- Set up notifications for unusual activity, such as a continuously running sump pump or an oven left on, enhancing home safety.
Whether you’re an energy-conscious homeowner, looking to dive into smart home automation, or a solar panel user aiming to maximize ROI, the Emporia Vue 3 offers the tools and insights to take control of your home’s energy consumption.
Technical Specification
- Supported Systems:
- Single phase, 2-wire systems
- Single-split phase, 3-wire systems
- 3-phase, 4-wire Wye systems with earthed (TN or TT), neutral (no-Delta)
- CT Current Sensors:
- Up to 3 x 200A mains and up to 16 x 50A branch circuits
- Max Voltage Sensing
- 264VAC L-N per channel
Connection Specs
- Wi-Fi: 2.4 GHz, IEEE 802.11b/g/n
- Ethernet: 10/100Base-T, IEEE 802.3
- Operating Conditions: -40° – 122° F (-40° – 50° C) | 0-80% RH | 3,000 meters above sea level | Indoor | Dry location | Pollution Degree 2
200A sensor dimensions:
- 6″ x 1.7″ x 1.6″ (65mm x 44mm x 41mm)
- Window diameter: 1″ (26mm)
- Cable length: 39″ (1m)
- Connector plug: 3.5mm
50A sensor dimensions:
- 6″ x 0.9″ x 1″ (41mm x 23mm x 26mm)
- Window diameter: 0.39″ (10mm)
- Cable length: 39″ (1m)
- Connector plug: 2.5mm
Emporia App and Data Storage
- Does the Emporia App require an internet connection?
- Yes! The Emporia App connects to the internet to deliver real-time energy monitoring, unlimited data storage, and automatic software updates—no manual syncing or local backups needed. Your data is securely stored in the cloud, so you can access it anytime, anywhere.
- Local storage is currently not supported.
- Data Storage: Seconds data is stored for 3 hours, minutes data is stored for 7 days
Certifications
- UL 61010: Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use
- UL 2808: ANSI/CAN/UL Energy Monitoring Equipment
- CE Marking: Health and safety requirements set out in European legislation
- UKCA Marking: Safety and environmental protection standards for the United Kingdom
- IC Certification: Standards for radio and telecommunications equipment in Canada
- FCC Certification: Electromagnetic interference in the United States
What’s Included
- Monitor: Vue Energy Monitor
- Sensors: Three main (200A) current sensors for service mains
- Additional Sensors: Up to 16 (50A) branch sensors for individual circuits
- Attachment: Wire Harness
- Accessories: Extra wire & wire nuts
- Internet: Wi-Fi antenna & cable
