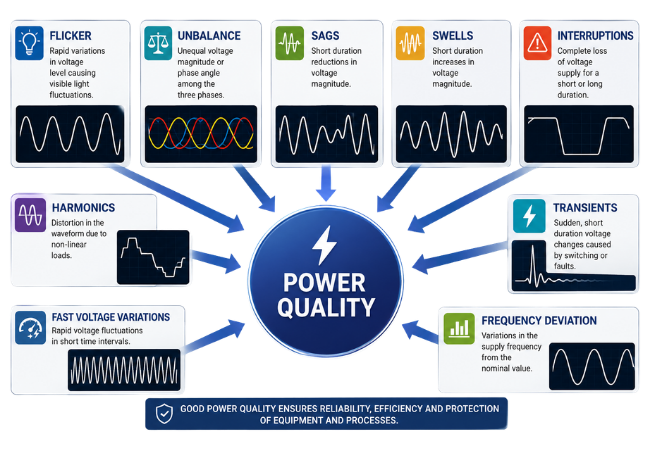

Power Quality Management
Control issues pertaining to power losses, increased equipment maintenance costs, failures in electronics & expensive control equipment, and decreased equipment lifespan etc...
Enhancing power quality with advanced solutions for voltage stability, reactive power control, and energy efficiency.
- Advanced Static VAr Generator
- Automatic Power Factor Controller
- Capacitor
- Power Quality Hybrid Solution
- Static Voltage Regulator
Power Quality Analyzers
Easily pinpoint & diagnose complex power quality issues at Industrial Plants, Malls/stores Hotels, Hospitals, Residential, Schools, Office Spaces, Datacentres, Commercial applications...
Class A Power Quality Meter : RS 485+Ethernet+USB
● Class A meter: IEC 61000-4-30
● High accuracy of Class 0.2S as per IEC 62053-22
● Ideal for incomers or high energy users
● High sampling rate of 1024 Samples/Cycle, Waveform recording, sag/swell monitoring
● Sag Swell, Interruptions, Flicker & Transient up to 5kHz as per IEC 61000-4-30 with waveform storage
● Measures up to 127th level of Individual Harmonics
● Built in web server displays all the parameters and Waveform
● 4GB storage downloadable through USB - continuous logging in pendrive
● Data collection in IOT server based on MQTT
● 12AM snapshot for 100 days for 29 parameters through RS485
● 31st day snap shot for 48 months through RS485
| Model | Description |
| Elmeasure PQ 8800 | Class A PQ (TFT), Class 0.2S, RS485+Ethernet+USB, 4GB DL, Ind Har 127th, 5A Inbuilt, 2DI+2DO |
| Elmeasure PQ 8800 | Class A PQ (TFT), Class 0.2S, RS485+Ethernet+USB, 4GB DL, Ind Har 127th, 5A Inbuilt |
| Elmeasure PQ 8800 | Class A PQ Meter (Graphical LCD), Cl. 0.2S, RS 485 + Ethernet+USB, 4GB-DL, Ind Har 127th, 5A Inbuilt, 2DI+2DO |
| Elmeasure PQ 8800 | Class A PQ Meter (Graphical LCD), Cl. 0.2S, RS 485 + Ethernet+USB, GB-DL, Ind Har 127th, 5A Inbuilt |
Automatic Power factor Controller (APFC)
Automatic Power Factor Controller Save electrical energy, maintain power factor to avoid losses and penalties. These APFC are single CT with zero programming. APFC are available in 2 Display options of LED and LCD...
- Single CT and 3 CT variants available
- Available with four quadrant power factor controllers
- Automatic sensing of capacitor bank values
- Programmable up to 1 to 8/12 stages
- Variant available with no programming & built-in VAF meter
- Variant available for RS485 MODBUS communication
- CE Certified
| Product Code | Description |
| SELEC APFC148-312-90/550V-CE | Power factor controller with 3CT, 12 Stage, LCD Display, 90 to 550V AC, 144 x 144 mm size |
| SELEC APFC146-112-90/550V-CE | Power factor controller with 1CT, 12 Stage, LCD Display, 90 to 550V AC, 144 x 144 mm size |
| SELEC APFC346-108-230V-CE | Power factor controller with 1CT, 8 Stage, LCD Display, 85 to 270V AC, 96 x 96 mm size |
| SELEC APFC147-112-90/550V | Power factor controller with 1CT, 12 Stage, LED Display, 90 to 550V AC, 144 x 144 mm size |
| SELEC APFC147-108-90/550V | Power factor controller with 1CT, 8 Stage, LED Display, 90 to 550V AC, 144 x 144 mm size |
| SELEC APFC347-108-230V | Power factor controller with 1CT, 8 Stage, LED Display, 85 to 270V AC, 96 x 96 mm size |
Capacitors
Automatic Power Factor Controller Save electrical energy, maintain power factor to avoid losses and penalties. These APFC are single CT with zero programming. APFC are available in 2 Display options of LED and LCD...
- Fast discharge resistors
- Over pressure disconnection system (Only above 10KVAR)
- Internal fuse for protection
- Polyurethane self-extinguishing resin V0, developed under standard UL94
- MPP type
Standard Duty Capacitors: 440V
1.0KVAr, 2.0KVAr, 3.0KVAr, 4.0KVAr, 5.0KVAr, 7.5KVAr, 10.0KVAr, 12.0KVAr, 15.0KVAr, 20.0KVAr, 25.0KVAr
Heavy Duty Capacitors: 440V
1.0KVAr, 2.0KVAr, 3.0KVAr, 5.0KVAr, 7.5KVAr, 10.0KVAr, 12.0KVAr, 15.0KVAr, 20.0KVAr, 25.0KVAr
Heavy Duty Capacitors: 480V
5.0KVAr, 10.0KVAr, 15.0KVAr, 20.0KVAr, 25.0KVAr
Heavy Duty Capacitors: 525V
5.0KVAr, 7.0KVAr, 10.0KVAr, 12.0KVAr, 15.0KVAr, 20.0KVAr, 25.0KVAr
Static Voltage Regulator (SVR)
Static voltage regulators incorporate Insulated-Gate Bipolar Transistor (IGBT) technology to stabilize the input voltage to a nominal value. This device controls the output voltage with the help of microprocessors and buck-boost transformers.
Specifications:
- Range : 1Ø : 2.5 kVA to 10 kVA ; 3Ø : 7.5 kVA to 100 kVA
- Fault Correction Time : 20msec
- Protection : Over / Under voltage, Over load, Over current
- Mitigates voltage sags & well in accordance with standards; Auto / Manual bypass mode
- Normal operating voltage range (for 1% output voltage regulation); 1Ø : 180 - 280V AC ; 3Ø : 320 - 480V AC
- Relaxed operating voltage range (for 10% o/p voltage compensation); 1Ø: 160-300V AC; 3Ø: 277-520V AC
- Selectable output voltage:1Ø : 220 / 230 / 240V ; 3Ø : 380 / 400 / 415V;
- IGBT Technology
Single Phase Static Voltage Regulator
Single phase static voltage regulator with IGBT technology used to control the input AC voltage through PWM switching of buck-boost transformer to achieve real-time compensation of voltage disturbances, sags or swell. The Operating Voltage Range is 180V to 280V and the available capacities are as follows:
- 1 Phase 2.5kVA
- 1 phase 5kVA
- 1 Phase 7.5kVA
- 1 Phase 10kVA
Three-Phase Static Voltage Regulator
Three phase static voltage regulator with IGBT technology used to control the input AC voltage through PWM switching of buck-boost transformer to achieve real-time compensation of voltage disturbances, sags or swell. The Operating Voltage Range is 340V to 480V and the available capacities are as follows:
- 3 Phase15kVA
- 3 Phase 22.5kVA
- 3 Phase 30kVA
- 3 Phase 50kVA
- 3 Phase 75kVA
- 3 Phase 100kVA
Advanced Static VAR Generator (ASVG)
Instantaneous and stepless compensation for dynamic reactive power & unbalanced load, mitigate Harmonics upto 15th order. A Solution to
reduce kVAh Units.
- Available in 15kVAr, 50kVAr & 100kVAr
- Real time, Dynamic step-less compensation
- Capacitive (Leading) & Inductive (Lagging) reactive power mitigation
- Advance feature- Harmonic correction up to 15 order
- Instant response time of 50 μsec & full response in less than 1 cycle
- Compensates current unbalance created by the load
- Modular Arrangement-Parallel operation up to 8 Module
- IGBT technology
- RS485, Optional Wi-Fi/Ethernet
ASVG 50 kVAr, 3P4W, Rack or Wall mounted
Product Variants
- ASVG-50KVAr- Rack Mount- 3 phase, 4 wire- 4 inch HMI display
- ASVG-50KVAr- Wall Mount- 3 phase, 4 wire- 4 inch HMI display
- ASVG-50KVAr- Wall Mount / Rack Mount- 3 phase, 4 wire- without HMI display
ASVG 100 kVAr, 3P4W, Rack or Wall mounted
Product Variants
- ASVG-100KVAr- RackMount- 3 phase, 4 wire- 4 inch HMI display
- ASVG-100KVAr- WallMount- 3 phase, 4 wire- 4 inch HMI display
- ASVG-100KVAr- WallMount / RackMount- 3 phase, 4 wire- without HMI display

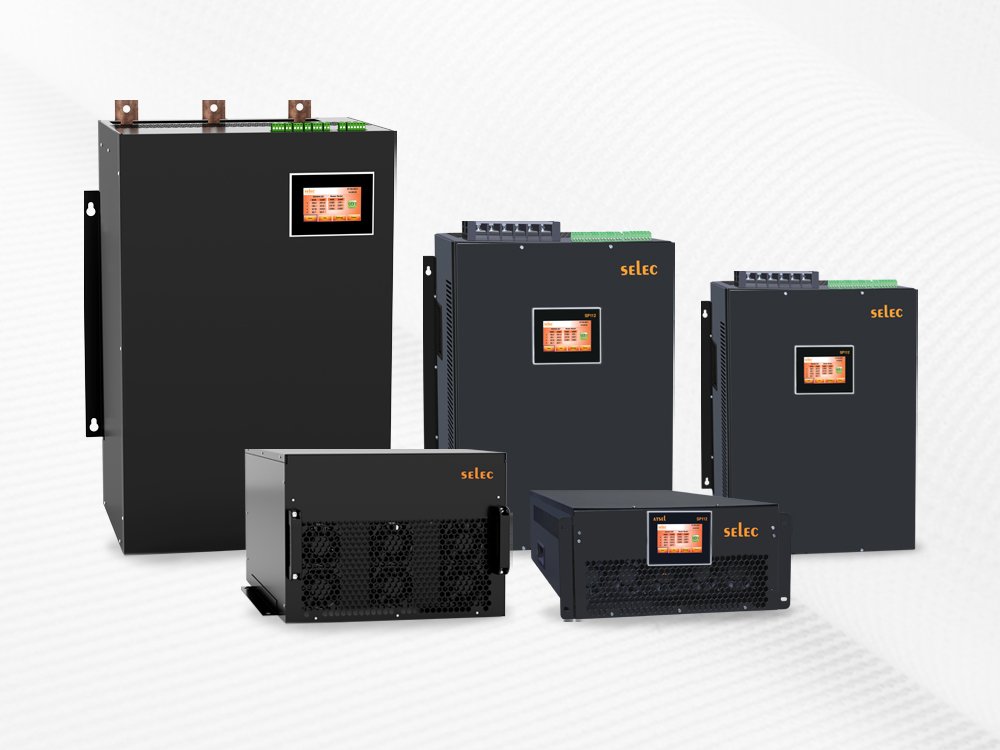

Active Harmonic Filter (AHF)
Active Harmonic Filter For Harmonic Mitigation, Load Balancing, and Power factor correction...
Specifications:
- Real time, Dynamic step-less compensation
- Capacitive (Leading) & Inductive (Lagging) reactive power mitigation
- Instant response time of 50 μsec & full response in less than 1 cycle
- Compensates current unbalance created by the load
- IGBT technology
50A, 3Phase 4Wire, Rack Or Wall Mount, Active Harmonic Filter
Real time, dynamic step-less compensation, Instant response time of 50 μsec & full response in less than 1 cycle, Capacitive (Leading) & Inductive (Lagging) reactive power mitigation, Harmonic correction up to 51th order, RS485, Optional Wi-Fi / Ethernet modular arrangement-parallel operation up to 8 module, Can be installed with conventional capacitor banks.
Product Variants
- AHF-50-RCK-4P-04: Active Harmonic Filter- 50A- Rack Type- 3P4W- 4.3" HMI
- AHF-50-WLL-4P-04: Active Harmonic Filter- 50A- Wall Mount- 3P4W- 4.3" HMI
- AHF-50-WLL-4P-XX: Active Harmonic Filter- 50A- Wall Mount- 3P4W- Without Display
100A, 3Phase 4Wire, Rack Or Wall Mount, Active Harmonic Filter
Real time, dynamic step-less compensation, Instant response time of 50 μsec & full response in less than 1 cycle, Capacitive (Leading) & Inductive (Lagging) reactive power mitigation, Harmonic correction up to 51th order, RS485, Optional Wi-Fi / Ethernet modular arrangement-parallel operation up to 8 module, Can be installed with conventional capacitor banks.
Product Variants:
- AHF-100-RCK-4P-04: Active Harmonic Filter- 100A- Rack Type- 3P4W- 4.3" HMI
- AHF-100-WLL-4P-04: Active Harmonic Filter- 100A- Wall Mount- 3P4W- 4.3" HMI
- AHF-100-WLL-4P-XX: Active Harmonic Filter- 100A- Wall Mount- 3P4W- Without Display
For further information and conversation on Power Quality Management solutions and pricing, please connect with us over Call/SMS/WhatsApp: +91 8279921905
